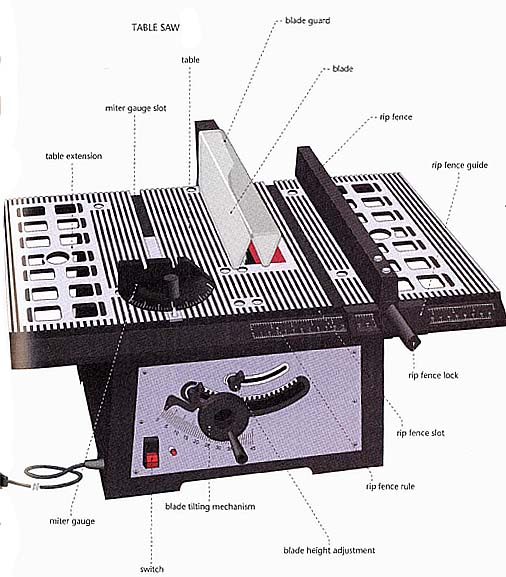

Table Saw: rip fence guide
rip fence slot
- blade guard
table
blade
miter gauge slot
table extension
- - rip fence
rip fence lock
miter gauge
blade tilting’ mechanism
rip fence rule
switch
blade height adjustment
